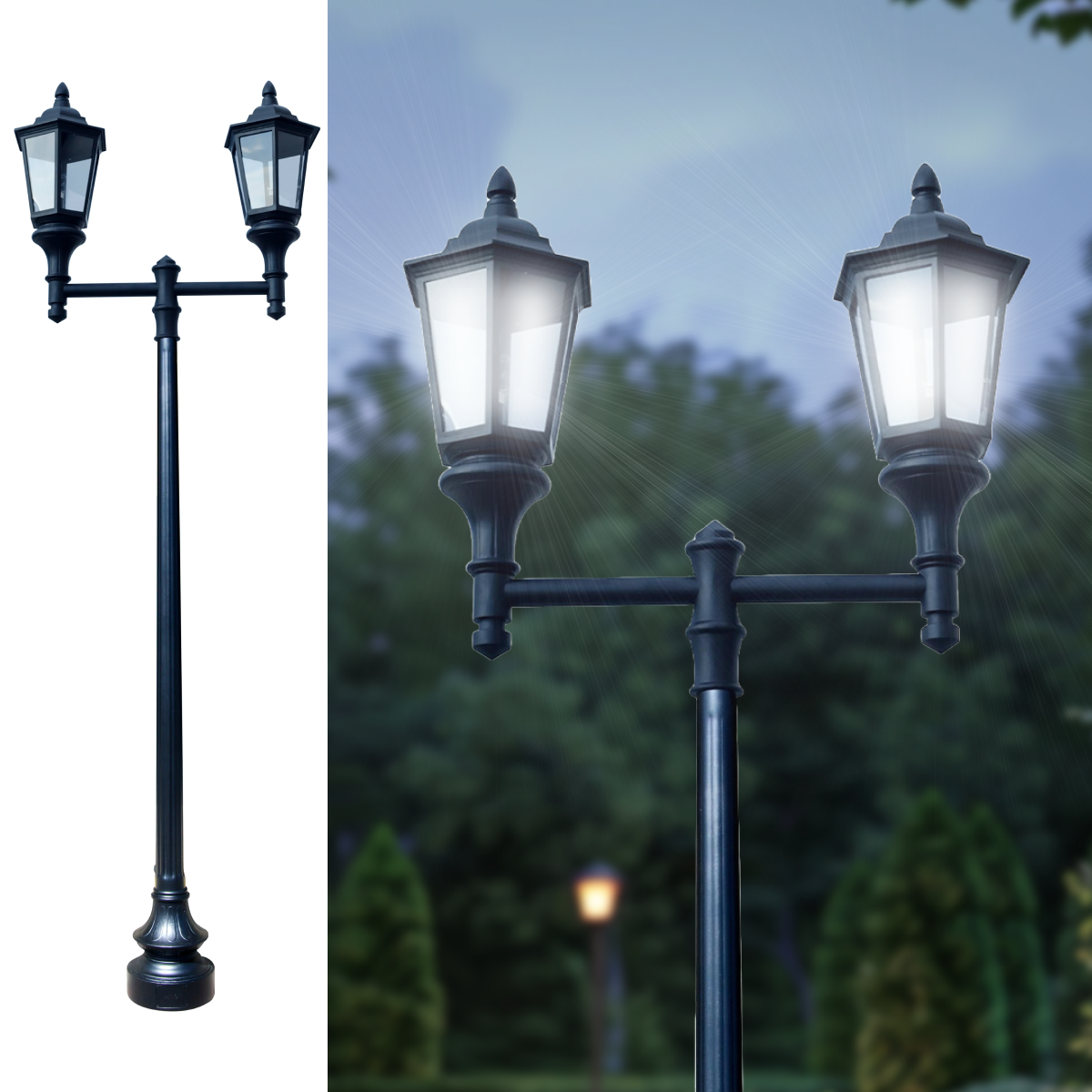

Double Lantern Style Municipal Quality Street Light Package

Double Lantern Style Municipal Quality Street Light Package

Double Lantern Style Municipal Quality Street Light Package

was $2,667.00 Special Price $2,133.40
In stock
SKU
4005D-2-Package
  • Buy 4 for $1,874.25 each and save 13%
  • Buy 10 for $1,672.90 each and save 22%
  • Material: Cast aluminum
  • Color: Black
  • Voltage: Multi-tap ballast installed - allows for wiring of 110-220-208-277 volts. For more information see this Info Page
  • Light Wattage Options: 75, 100, 125, 150, 210
  • Lighting Source Options: High Pressure Sodium, Metal Halide or LED
  • Photocell: 110 Volt Day / Night Sensor Installed. SENSOR WIRED FOR 110 SERVICE ONLY for alternative voltages a separately purchased photocell will be required.
  • Base height: 20 in.
  • Fixture height: 56 in.
  • Fixture distance (finial to finial): 45.7 in.
  • Fixture distance (outside to outside): 68.4 in.

4005-2 Street Light - Visual Overview

The 4005D-2 Double Grande Jamestown Style Street Light Package is ideal for commercial locations. Made of cast and extruded aluminum, the 4005D-2 is durable, weather resistant, and provides a substantial area of quality, outdoor lighting.

Assembly is straightforward: attach the pole to the pedestal base, and then attach the fixture vertically to the pole via preconfigured threading. Finally, bulk discounts are available for high volume orders, making the 4005D Style Street Light a smart choice for your next commercial streetscape project.

4005-2 Street Light Fixture Unpacking

The 4005-2 Light Fixture comes packed inside a single cardboard box within a wooden crate. The fixtures themselves are protected by dense styrofoam padding and wrapped in plastic.

Note: in the video we mention that bulbs come in the box with the fixtures because this was how the bulbs were previously shipped. Currently, if you purchase bulbs with your street light fixture or package, they will ship separately.

Each fixture comes in two parts: the top finial piece (made of cast aluminum) and the pane piece (made of PMMA with cast aluminum framing). Mounting hardware is included in the fixture’s protective plastic.

4005-2 Double Fixture Assembly

  • The 4005D-2 is shown mounted on an 8-foot pole. However, it can be configured with a pole up to 14 feet from our dropdown options.
  • If you need a pole taller than 14 feet, you can select Custom size needed from our options. Note: custom pole heights require a follow-up with our sales team regarding final pricing.
  • The 4005D-2 is also shown with the standard one-piece base, though it can be configured with the extended base shown with the 4001 street light.

Detailed Specs - 4005-2

  • Material: Cast aluminum
  • Color: Black
  • Voltage: Multi-tap ballast installed - allows for wiring of 110-220-208-277 volts. For more information see this Info Page
  • Light Wattage Options: see the dropdown options above the Add to Cart button
  • Lighting Source Options: High Pressure Sodium, Metal Halide or LED
  • Photocell: 110 Volt Day / Night Sensor Installed. Sensor wired for 110 service only. For alternative voltages, a separately purchased photocell will be required.
  • Perfect for commercial use, streets, parking lots, etc.
  • Base height: 20 in.
  • Fixture height: 56 in.
  • Fixture distance (finial to finial): 45.7 in.
  • Fixture distance (outside to outside): 68.4 in.
  • Base width: 17 in.
  • Pole height: varies based on pole length selected in options
  • Inside distance between fixtures: 22.8 in.
  • Fixture width: 22.8 in.

Current LED bulb direct wire light description:

  • Simple Socket on bulb with 2 access points.
  • 3 Wires: Black-110, White-110, Green-Ground wire.
  • Depending on your voltage, you may need to “ground” the white wire as well as the green wire if you have a 110 volt situation.
More Information
Weight 2.0000
Style Historic
Brand Venia Products

GotItWholesale.com provides a one (1) year Warranty on its products from the date of purchase. This Warranty covers defects in material and workmanship of any manufactured item and GotItWholesale.com will, at its option, repair or replace a defective item or refund the price paid for the defective item. All claims must be made promptly in writing and accompanied by a copy of the original invoice.

We encourage customers to read our full Warranty before purchasing Street Light packages, fixtures, or photocells.

Disclaimer for all fixtures:

  • Warranty is void if fixture or photocell is not installed by a licensed electrician.
  • We recommend, that if you have issues with the fixture, you have the licensed electrician troubleshoot the issue.

NOTE: ALWAYS USE A LICENSED ELECTRICIAN

Installing the Pole

  • Screw the pole into the base from a vertical position, as this prevents cross-threading.
  • With one person, threading the pole into the base may take 3 to 5 minutes due there being approximately 5 inches of thread.

Installation Overview*

You should install your street light onto a cement pad -- the pad itself should be the depth of your local frost line. The base pad should be poured cylindrically with a width of not less than 2 inches larger than the diameter of the base.

You will need four (4) L-Shape bolts measuring 1/2 in. x 12 in. to 18 in. for installation (not provided, but you may obtain these at your local hardware store).

The electrical conduit containing the main electrical wire should protrude through the center of this cement pad. Connect the base of the light to the cement pad using nuts and connect the main electrical wire to the leads extending down from the socket assembly (standard) or the ballast/socket assembly (optional).

Note: The attached templates will typically not print to scale. These templates are only for reference. We recommend that you cut a wood template form using the measurements we provide here. We insist that you confirm the accuracy of your wooden form by physically holding it up against the base and confirming the alignment.

Here are some helpful installation videos:

*Disclaimer: GotItWholesale cannot be held responsible for faulty installation due to the installer's failure to confirm the accuracy of measurements. Also, the videos provided above are not produced by GotItWholesale and, as such, should be used as general guidelines only -- some of the content in the above videos may not apply to the street light listed on this page. It is the customer and/or installer’s responsibility to ensure proper installation of these units.

Image for reference only: HPS & MH Bulbs shown above are not sold individually on GotItWholesale.com.

LED (Standard)

All street light packages on GotItWholesale.com use LED as the standard lighting source. LED is both cost and energy-efficient since LED bulbs last longer and require less wattage for lighting outputs comparable to higher wattage HPS and MH bulbs (detailed below).

The LED lamp has grown more popular due to its efficiency. Although the LED bulb has been around for over 50 years, the white LED’s recent development caught the public eye as a replacement for other white light sources.

Advantages:

  • Excellent efficiency (lumens per watt)
  • Energy efficient source of light for short distances and small areas
  • Longer lasting than HPS or MH bulbs
  • Higher energy savings as they require less wattage to operate
  • Becoming the preferred lighting source across multiple industries
  • Durable and shockproof unlike glass bulb lamp types
  • Directional nature is useful for some applications like reducing stray light pollution on streetlights

Common uses: indoor and outdoor lighting applications (streetlights, parking lot lighting, etc.), home yard lighting, high bay lighting.

High Pressure Sodium (HPS)

The HPS bulb is one of the most common lighting sources on the market, though more industries are beginning to take advantage of LED benefits.

Advantages:

  • Good efficiency (lumens per watt)
  • Smaller size than LPS or fluorescent; the HPS to fits into many fixture types
  • Can be retrofitted into older Mercury Vapor fixtures
  • Better bulb life than LPS lamps

Common uses: outdoor lighting, municipal lighting, home yard lighting, high bay lighting.

Metal Halide (MH)

Metal Halide bulbs have become increasingly popular due to their quality white light and good efficiency. The MH lamp is typically installed in stadiums and sports fields.

Developers also use them for parking lots and street lighting in urban areas.

Advantages:

  • More pure white light than the popular HPS lamps
  • Close to daylight frequencies
  • More energy efficient than mercury vapor and halogen lamps
  • Good lumen output
  • Good for outdoor use

Common uses: outdoor lighting where good color rendering is needed (parking lots, sports fields, etc.).

ModelBase MaterialPole MaterialFixture MaterialTotal weight
4001 Cast aluminum Extruded aluminum Cast aluminum & PMMA 88 lbs (Heavy Duty)
4001-2 Cast aluminum Extruded aluminum Cast aluminum & PMMA Call for details
4002 Cast aluminum Extruded aluminum Cast aluminum & PMMA 100 lbs (Heavy Duty)
4003 Cast aluminum Extruded aluminum Cast aluminum & polycarbonate 88 lbs (Heavy Duty)
4004 Cast aluminum Extruded aluminum Cast aluminum & polycarbonate 88 lbs (Heavy Duty)
4005 Cast aluminum Extruded aluminum Cast aluminum & PMMA Call for details
4005D-2 Cast aluminum Extruded aluminum Cast aluminum & PMMA Call for details
4006 Cast aluminum Extruded aluminum Cast aluminum & PMMA Call for details
4007 Cast aluminum Extruded aluminum Cast aluminum & PMMA 110 lbs (Heavy Duty)
4007-2 Cast aluminum Extruded aluminum Cast aluminum & PMMA Call for details

ModelColorVoltageWattage optionsSource optionsPhotocell
4001 black Multi-tap ballast installed - 110-220-208-277 volts See dropdown options See dropdown options 110 Volt Day / Night Sensor*
4001-2 black Multi-tap ballast installed - 110-220-208-277 volts See dropdown options See dropdown options 110 Volt Day / Night Sensor*
4002 black Multi-tap ballast installed - 110-220-208-277 volts See dropdown options See dropdown options 110 Volt Day / Night Sensor*
4003 black Multi-tap ballast installed - 110-220-208-277 volts See dropdown options See dropdown options 110 Volt Day / Night Sensor*
4004 black Multi-tap ballast installed - 110-220-208-277 volts See dropdown options See dropdown options 110 Volt Day / Night Sensor*
4005 black Multi-tap ballast installed - 110-220-208-277 volts See dropdown options See dropdown options 110 Volt Day / Night Sensor*
4005D-2 black Multi-tap ballast installed - 110-220-208-277 volts See dropdown options See dropdown options 110 Volt Day / Night Sensor*
4006 black Multi-tap ballast installed - 110-220-208-277 volts See dropdown options See dropdown options 110 Volt Day / Night Sensor*
4007 black Multi-tap ballast installed - 110-220-208-277 volts See dropdown options See dropdown options 110 Volt Day / Night Sensor*
4007-2 black Multi-tap ballast installed - 110-220-208-277 volts See dropdown options See dropdown options 110 Volt Day / Night Sensor*


* Photocell SENSOR WIRED FOR 110 SERVICE ONLY. For alternative voltages, a separately purchased photocell will be required.

ModelBase dimensionsBase weightPole diameterPole weightFixture dimensionsFixture weightGlobe height
4001 19 in. H x 17 in. Diameter* 67 lbs. 4.4 inches ✢ Approx. 18.8 lbs. 13 in. H 23 lbs 22 inches
4001-2 55 in. H x 17 in. Diameter* 67 lbs. 4.4 inches ✢ Approx. 18.8 lbs. 13 in. H 23 lbs (x 2) 22 inches
4002 19 in. H x 17 in. Diameter* 67 lbs. 4.4 inches ✢ Approx. 18.8 lbs. 36.5 in. H x 22 in. W 57.5 lbs N/A
4003 19 in. H x 17 in. Diameter* 67 lbs. 4.4 inches ✢ Approx. 18.8 lbs. 35.4 in. H x 16.3 in. W 43 lbs N/A
4004 19 in. H x 17 in. Diameter* 67 lbs. 4.4 inches ✢ Approx. 18.8 lbs. 35.4 in. H x 16.3 in. W 43 lbs N/A
4005 19 in. H x 17 in. Diameter* 67 lbs. 4.4 inches ✢ Approx. 18.8 lbs. 45.2 in. H x 19.8 in. W Call for details N/A
4005-2 19 in. H x 17 in. Diameter* 67 lbs. 4.4 inches ✢ Approx. 18.8 lbs. 58.2 in. H x 45.7 in. W (finial to finial); Total fixture distance (outside to outside): 68.4 in. Call for details N/A
4006 55 in. H x 17 in. Diameter* 67 lbs. 4.4 inches ✢ Approx. 18.8 lbs. 80.7 in. L x 27.2 in. H x 21.7 in. W Call for details N/A
4007 55 in. H x 17 in. Diameter* 67 lbs. 4.4 inches ✢ Approx. 18.8 lbs. 26 in. W x 29 in. H Call for details N/A
4007-2 55 in. H x 17 in. Diameter* 67 lbs. 4.4 inches ✢ Approx. 18.8 lbs. 23.6 in. W x 44.4 in. H; Total fixture distance (outside to outside): 82 in. Call for details N/A


* Wider open base measurements: 16.75 inches in diameter x 19 inches high x 6 inches wide at the top-opening. See Overview of Street Light Measurements for both base diagrams. ✢ Tapered pole diameter is 6 inches at the base and tapers to 4.4 inches at the top.

Customers can configure our street light packages and light fixtures for the following:

  • 110 Volts
  • 220 Volts
  • 208 Volts
  • 277 Volts

The voltage you select will depend on the operating environment where you intend to install the street lights. We encourage you to consult an electrician from your region if you are unsure which voltage configuration to select. For more info on different electrical service types and voltages, view this resource.

NOTE: ALWAYS USE A LICENSED ELECTRICIAN

The electrician may start by testing the following:
  • Installation
    • Recommended to face photocell in North direction.
  • Continuity (see the links provided below)
  • Voltage
    • Test Voltage - this should be within a 10% range (e.g., 110V should range from 108V to 132V).
    • Tip: If it is metered voltage, issues will likely involve the electrician hired to install the fixture. If it is connected directly to the transformer, then the power company may need to address voltage issues.

Customers can purchase our street light packages with the following lamps, wiring, and wattage configurations:

Lamp Type Wattage Color Temp.
Metal Halide 70W Cool White
Metal Halide 100W Cool White
Metal Halide 150W Cool White
Metal Halide 175W Cool White
High Pressure Sodium 70W Warmer (orange hue)
High Pressure Sodium 100W Warmer (orange hue)
High Pressure Sodium 150W Warmer (orange hue)
High Pressure Sodium 175W Warmer (orange hue)
LED Bulb 12W (equiv. 50W incand.) White / Daylight
LED Bulb 15W (equiv. 50-70W MH) White / Daylight
LED Bulb 19W (equiv. 75W MH) White / Daylight
LED Bulb 27W (equiv. 100W MH) White / Daylight
LED Bulb 36W (equiv. 100-150W MH) White / Daylight
LED Bulb 45W (equiv. 150-175W MH) White / Daylight
LED Bulb 54W (equiv. 225W MH) White / Daylight

Pole Type and Length

You can configure the street light pole starting at 8 feet tall and as high as 14 feet tall. If you require a pole taller than 14 feet, you can select Custom size needed from the dropdown options -- only please note that additional charges will be calculated after the order is placed (if you select this option, we will confirm the total with you directly prior to finalizing the purchase).

In addition to the straight pole, we offer an 8-foot tall tapered pole which will be configured with a wider open base.

See below for each pole’s pricing (note: the 8-foot straight pole comes standard with the package and has no additional charge):

  • 8-foot straight pole (overall estimated height: 13 feet) (standard)
  • 8-foot tapered pole (overall estimated height: 13 feet) (+$150.00)
  • 10-foot straight pole (overall estimated height: 15 feet) (+$200.00)
  • 12-foot straight pole (overall estimated height: 17 feet) (+$400.00)
  • 14-foot straight pole (overall estimated height: 19 feet) (+$600.00)
  • Custom size needed (additional charges may apply)

Flag Holders & Plant Holders

You can add up to two (2) flag / plant holders to each street light package. The flag holder attaches to the middle of the light pole via a circular bracket and includes a rubber insert to shield the pole from abrasion or scratching.

The flag holder is made of heavy-duty cast aluminum and can be used to hang flags or plants for your municipality, residential project, park, etc. If you have a large project and need to see a sample, just let us know and we will ship one out to you.

Flag holder pricing is below:

  • One (1) flag / plant holder: $59.00
  • Two (2) flag / plant holders: $118.00

Base Diagram - Standard and Wide

Although the standard base and wider open base have different top dimensions, the bottom dimensions are the same for each. Even so, we’ve included separate diagrams for each base model below.

The standard base and wider open base have the same template:

Base Measurements

The top of the standard base measures approximately 4 inches to accommodate a 4-inch diameter pole.

The top of the wider open base measures 6 inches in diameter to accommodate a wider pole at the bottom.

The total measurements for both bases are 19 inches high by 16.75 inches in diameter.

Why Should You Choose LED Lighting?

Cities and communities all over the U.S. are making use of low-energy Light Emitting Diode (LED) fixtures. And with good reason: LEDs offer the highest energy savings of any lighting source available. Energy savings means a better lighting solution for both the environment and your wallet. LED bulbs can also be used with commercial acorn and sphere globes, as well as many residential cast aluminum light fixtures.

LED bulbs can also be used to retrofit existing HID ballast light fixtures.

Advantages of LED Lighting over HID Lighting

  • LED is the most energy-efficient light source available. They are preferred because of the high volume of energy savings and also because they contain no hazardous materials, such as mercury.
  • They possess a greater than 50,000 hours lifespan (5.7 years). Their long lifespan is double the span of Metal Halide and High Pressure Sodium bulbs.
  • Unlike other lighting sources, LED lights do not attract bugs because they do not produce UV light (UV light is what draws bugs to traditional light sources).
  • With LED, you get a faster return on investment: You can save over $200.00 per year with a 40-watt LED versus a 175-watt Metal Halide bulb.

LED Bulbs - Additional Information

  • 120 - 277 Max Voltage.
  • Low heat output.
  • Fit existing power systems.
  • Built-in surge suppressors & protection.

Do you still have questions about LED light fixtures versus more traditional lighting sources? Please give call us at (866) 390-5227 to speak with a customer care representative.

DISCLAIMER: PROFESSIONAL ASSEMBLY REQUIRED. NO INFORMATION PROVIDED ON THIS WEBSITE OR BY OUR PHONE REPRESENTATIVES SHOULD BE USED UNLESS UNDER THE DIRECTION OF A LICENSED PROFESSIONAL ELECTRICIAN.

Note: the above wind load map is provided as a general guideline only. Please consult your local codes for specific project requirements.

Pole Wind Loading:

Effective Projected Area or EPA is a wind resistance rating given for street fixtures, light pole brackets, and fixture accessories. The total of all accessory EPA ratings must not exceed the pole capacity EPA for the wind zone where it is installed (see wind zone map below).

Note that there may be more than one wind velocity in any geographical area (e.g., the greater Tampa, Florida area has three different wind zones). You should also select lighting poles for your location that can withstand the additional stresses caused by weight (the fixture, for example). Please check local ordinances and building codes for the most current requirements.*

Pole Banner Loading:

Note: the largest EPA addition to any pole will be from single or double rectangular shaped decorative banners and street signs. Why? The sign or banner's greater surface area is more exposed to the wind and creates a high EPA value when compared to fixtures and arm brackets. In this case, a larger pole diameter or thicker wall may be required. Always contact the manufacturer whenever banners are to be used.

Venia Lighting products are designed to meet industry accepted wind loading standards for decorative street lighting. State or federal lighting projects may require decorative poles to meet specifications established by the American Association of Street and Highway Traffic Officials (AASHTO). Consult the manufacturer for separate EPA capacities according to AASHTO recommendations.
